AI Dashcam

Model ：: YG-SEYE-E2H3

Input ：: 3-Channel AHD

Feature ：: Built-in ADAS、DMS and BSD algorithms

Collect

Function Description

Based on the new generation of artificial intelligence (AI) algorithms and high-performance processors, a comprehensive in-vehicle active safety solution combining "human-vehicle-road" has been realized. The intelligent driving safety assistance system supports 3-Channel AHD high-definition cameras and can simultaneously detect bad driver behaviors such as fatigue, distracted attention, smoking, and phone calls using machine vision and artificial intelligence. It also provides functions such as vehicle distance detection, lane departure warnings, and pedestrian detection.

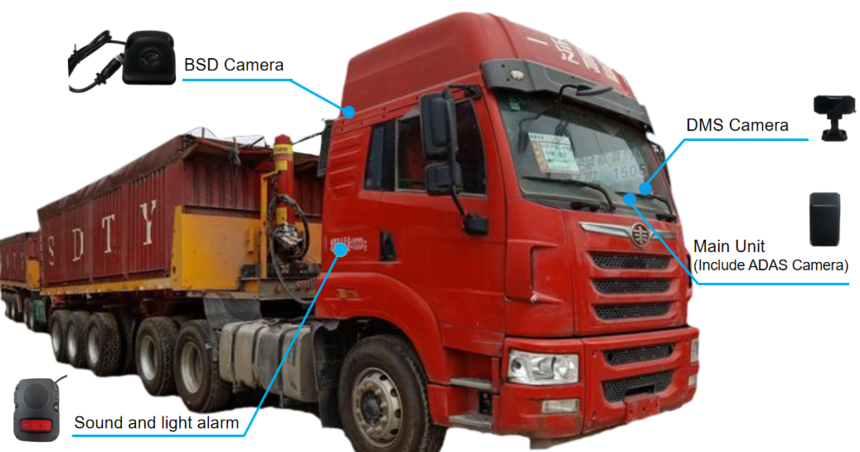

Device Position Map.png

1. Driver Behavior Warning Function

The driver behavior warning function mainly includes fatigue warning, smoking detection, phone use detection, distracted attention detection, and other abnormal behaviors detection.

Driver Behavior Warning Functions (Testing under normal mode, the alarm will trigger once the activation speed is reached)

Function Module	Description
Fatigue Alarm	Detects if the driver closes their eyes for more than 3 seconds and issues a "Please take a rest" voice alert.
Yawning	Detects if the driver yawns with their mouth open for more than 3 seconds and issues a "Please take a rest" voice alert.
Smoking	Detects if the driver smokes for more than 2 seconds and issues a "Please do not smoke" voice alert.
Phone Use	Detects if the driver uses a phone for more than 3 seconds and issues a "Please do not use the phone" voice alert.
Looking Around	Detects if the driver turns their head left or right more than 40° for more than 3 seconds and issues a "Please pay attention to the road" voice alert.
Looking Up/Down	Detects if the driver lowers or raises their head more than 30° for more than 3 seconds and issues a "Please pay attention to the road" voice alert.
Camera Failure	Detects if the camera is obstructed for more than 5 seconds and issues a "Camera failure" voice alert.
Driver Abnormality	Detects if the driver's face is out of the camera's view for more than 5 seconds and issues a "Driver abnormality" voice alert.

All of the above data are based on default settings and can be adjusted according to actual requirements.

Activation Conditions: Default speed greater than 20 km/h,different activation speeds can be configured for various alerts.

Alarm Mode: Voice alarm.

2. Forward Warning Function

Function Module	Description
Forward Collision Warning (FCW)	Detects if there is a vehicle in front within 200 meters at speeds over 30 km/h and issues a "Please pay attention to the vehicle ahead" voice alert if there is a collision risk. When the vehicle speed exceeds 30 km/h, within a detection range of 200 meters, and the estimated collision time is less than 5 seconds.
Pedestrian Collision Warning (PCW)	Detects if there is a pedestrian in front within 200 meters at speeds over 30 km/h and issues a "Please pay attention to the pedestrian" voice alert if there is a collision risk. When the vehicle speed exceeds 30 km/h, within a detection range of 200 meters, and the estimated collision time is less than 5 seconds.
Lane Departure Warning (LDW)	When the lane markings are clearly visible and the vehicle speed exceeds 30 km/h, if the driver changes lanes without using the turn signal (regardless of whether the lane markings are solid or dashed), a warning will be triggered. The system will issue a 'Lane Departure' voice alert.

All of the above data are based on default settings and can be adjusted according to actual requirements.

Alarm Mode: Voice alarm.

3. Positioning and Communication Function

Function Module	Description
4G Function Module	Real-time video query and upload; backend monitoring.
Local Communication	CAN communication

4. Blind spot Detection:

Detect pedestrians and vehicles in front of the vehicle , on the side and behind the vehicle in real time, so as to warn drivers of potential risks of collision, and improve the driving safety!

Hardware Parameter

1. Main Unit Parameters

The main unit parameters are as follows:

Category	Function	Technical Performance Indicators
System	Main Processor	High-performance processor
	Dimensions	5810247mm
Video	Video Input	3-Channel AHD high-definition cameras
Storage	Device Memory	8GB
Communication	CAN Input	Supports external CAN communication devices
	GPS Positioning	GPS module (optional)
	4G Network	External 4G module (optional)
Other	Operating Voltage	Normal operating voltage range: 9~32V
	Average Power Consumption	＜12w/24V

2. DMS Camera Parameters

The DMS camera parameters are as follows:

Category	Item	Parameters
Resolution		720P
Temperature	Working & Storage	-30℃~+80℃
Power Supply	Voltage	DC12V
Output Video	Format	PAL/NTSC
Frame Rate		25fps
Viewing Angle		Vertical 55°, Horizontal 70°, Diagonal 90°
Current		120mA
Main Light Wave Length		940nm

3. BSD Camera Parameters

The BSD camera parameters are as follows:

Category	Item	Parameters
Resolution		720P
Temperature	Working & Storage	-30 ~85 ℃
Power Supply	Voltage	DC12V
Output Video	Format	PAL/NTSC
Frame Rate		25fps
Viewing Angle		Vertical 60°,Horizontal 100°, Diagonal 120°
Protection Level		IP67

4. Front HD Camera Parameters

The front HD camera parameters are as follows:

Category	Item	Parameters
Resolution		720P
Temperature	Working & Storage	-30℃~+80℃
Power Supply	Voltage	DC12V
Output Video	Format	PAL
Frame Rate		25fps
Viewing Angle		Diagonal 51°
