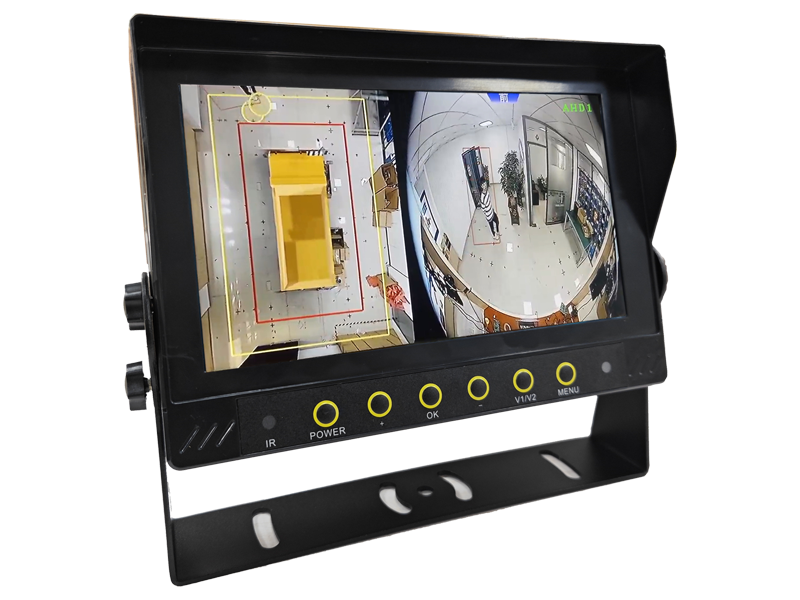

7 inch All-In-One

1080P HD Intelligent Pedestrian Detection System,  installs 4 to 6 wide-angle cameras around the vehicle to cover all visual fields around the vehicle. It processes multiple video streams captured at the same time into a top-down view of the vehicle's surroundings, displaying it on the central console screen. This allows the driver to clearly check for obstacles around the vehicle and understand the relative position and distance of obstacles, facilitating easy parking. It is not only intuitive but also enhances the driver's ability to maneuver the vehicle into position or navigate through complex road surfaces, effectively reducing accidents such as scratches, collisions, and falls. The system integrates the BSD blind spot monitoring and warning function, using AI technology to analyze real-time videos captured by the 360° panoramic surround view cameras. It can detect, identify, track, and locate people and objects around the vehicle in real-time. When predicting potential dangerous situations, it provides audio-visual alerts and outputs signals for speed control, effectively preventing accidents such as collisions and ensuring the safe operation of the vehicle.

1.  360° Panoramic Surround View (AVM), supporting 4 to 6-way surround splicing

Due to the constraints of the vehicle's structure, blind spots and inner wheel differences exist, especially for larger vehicles. This poses significant risks to traffic safety.

As shown in the diagram below depicting vehicle blind spots:：

The integrated system achieves a seamless and complete panoramic top-down view, known as a 360° panoramic surround view, by installing four ultra-wide-angle cameras on the front, rear, left, and right sides of the vehicle. These cameras simultaneously capture images around the vehicle, and after correction and stitching by the image processing unit, a seamless and comprehensive panoramic bird's-eye view is generated.

2.  Blind Spot Detection and Warning (BSD), supports second-level warnings, and allows for custom alarm zone configuration

The integrated system's Blind Spot Detection (BSD) monitoring and warning system continuously detects objects (such as pedestrians, bicycles, cars, motorcycles, and other obstacles) within the blind spots around the vehicle using high-definition cameras from the 360° surround view. Based on the distance of the identified objects from the vehicle, the system categorizes them into first-level and second-level warnings during vehicle operation.

3.  External Voice Warning Device

When an object approaches the vehicle, the BSD audio-visual alarm will instantly emit a "large vehicle danger" sound alert, accompanied by flashing LED lights to warn pedestrians and nearby objects. The in-car display screen can synchronously zoom in on the side camera image and trigger the in-car alarm buzzer for voice reminders. This informs the driver of the optimal time for lane changing, assisting the driver in avoiding blind spot objects and significantly reducing the occurrence of accidents caused by blind spots. The goal is to assist in safe driving.

4.  Speed Limit Switch Signal Output

The integrated system real-time monitors pedestrians. When a pedestrian is detected entering the first-level warning zone, it triggers a voice alarm and can output a switch signal (used for triggering the vehicle speed limit function)

5.  Driving Video Recording

Supports SD card for real-time local recording of the vehicle's driving process.

6.  Integration of active safety warning signals such as radar and tire pressure;

7. The high-end version supports 4G and GPS positioning functions, allowing integration with vehicle operation platforms;

1. Main Unit Parameters

2.  Camera Parameters
